| 型号 | 额定荷载 | 起升速度 | 转速 | 工作电压 | 控制电压 | 链条倍率 | 工作级别 |
| Model | Capacity(Ton) | Lifting speed | rotation speed | Working power | Control voltge | Chain fall | Working level |
| (m/min) | (r/min) | ||||||
| JDL0.25-01S | 0.25 | 8/2 | 2880/720 | 220V-460V | 24V | 1/1 | M5 |
| JDL0.5-01S | 0.5 | 8/2 | 2880/720 | 220V-460V | 24V | 1/1 | M5 |
| JDL0.5-02S | 0.5 | 4/1 | 2880/720 | 220V-460V | 24V | 2/1 | M5 |
| JDL01-02S | 1 | 4/1 | 2880/720 | 220V-460V | 24V | 2/1 | M5 |

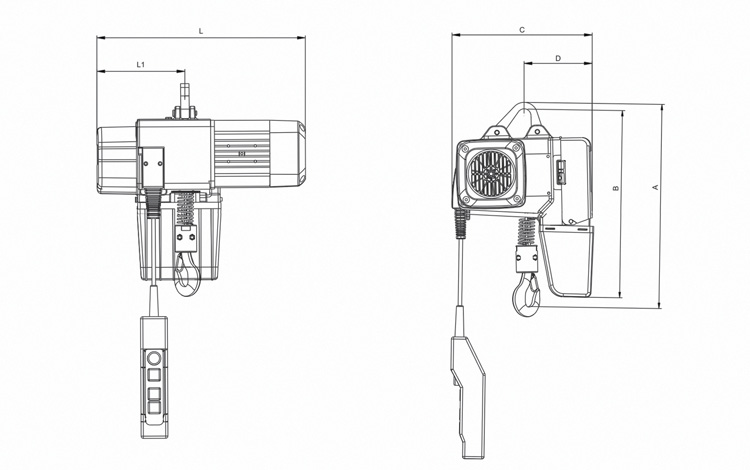

| 型号 | 链条倍数 | L(mm) | L1(mm) | A(mm) | B(mm) | C(mm) | D(mm) |
| Model | Chain fall | ||||||
| JDL0.25-01S | 1/1 | 425 | 156 | 370 | 420 | 275 | 148 |
| JDL0.5-01S | 1/1 | 467 | 197 | 400 | 450 | 315 | 153 |
| JDL0.5-02S | 1/1 | 425 | 156 | 420 | 420 | 275 | 148 |
| JDL01-02S | 1/1 | 467 | 197 | 450 | 450 | 315 | 153 |
